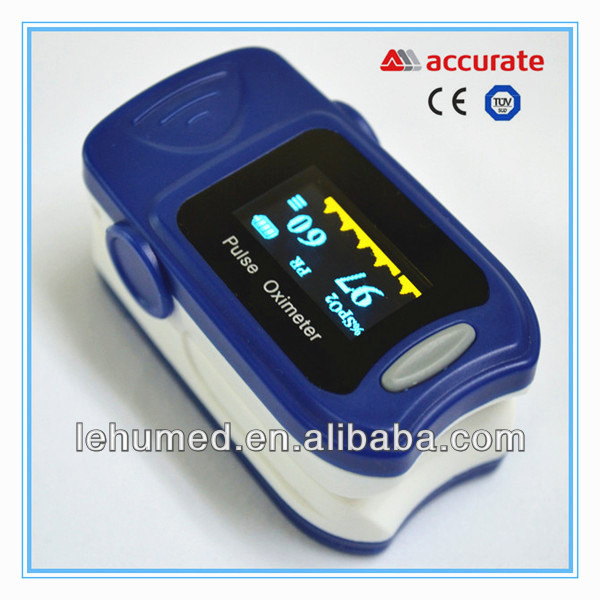

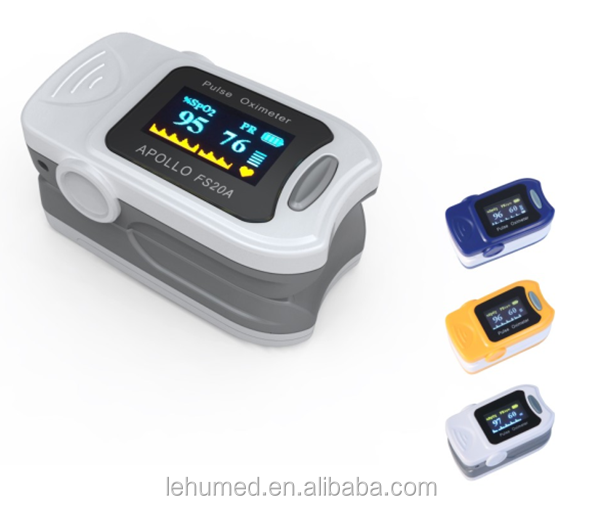

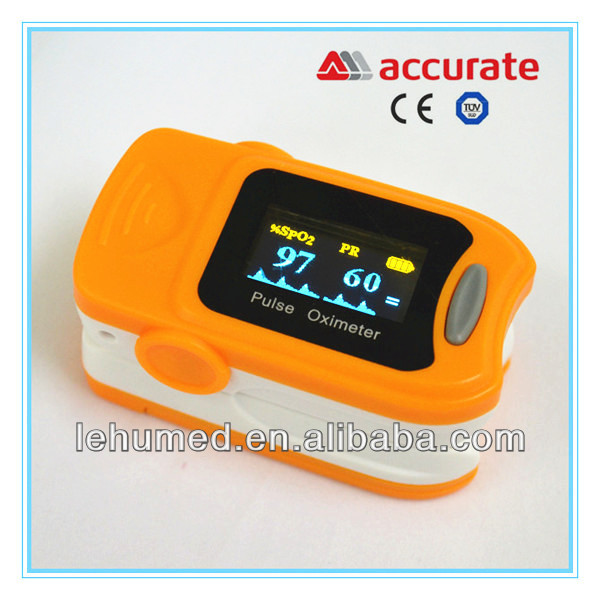

Blood Pressure Monitor Type Oxygen Fingertip Pulse Oximeter
0.96" Dual-color OLED display(blue and yellow)
Operation of the product is simple ,low power
SpO2 value, Pulse rate value, bar graph, Pulse
waveform, pulse mark, battery volume;
Pulse synchronization function:
The pulse waveform, pulse mark, and bar graph are synchronous with the pulse beep.
Different display mode:
There are four display modes, and the display mode can be changed by pressing the key;
Pulse Beep function:
The pulse beep is synchronous with the pulse and
can be on/off by press key;
When the measurement result is out of the pre-setting
threshold, the beep will alarm and the measurement result will sparkle;
Real time voltage indication:
voltage indicator always appears and inform the users to replace the new battery;
Automatically power off function:
when the device is under the state of measuring interface . it will automatically power off within 8 seconds if the finger falls out of probe.
SpO2 Measuring Range:
0%~100%, (the resolution is 1%).
70%~100%:±2% ,Below 70% unspecified
PR Measuring Range:
30bpm~250bpm, (the resolution is 1bpm)
±2bpm or ±2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (select larger).
Resistance to surrounding light:
The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%;
less than 30mA
1.5V (AAA size) alkaline batteries × 2
Battery working hour:
Theoretical number is 32 hours.
Interior Battery,BF Type
57(L) × 31(W) × 32(H) mm
About 50g (with the batteries)
Package and Accessories
Our Special Advantages:
Powerful function with 0.96" Dual-color OLED display, small but durable
Four Direction Display, can change the way you like
Spo2 Parameter performance
Range: 35~100%; resolution: 1%;
PR Parameter performance
Range: 25~254bpm; resolution: 1 bpm;
Blood Perfusion Index performance
Range: 0.2~20%; resolution: 0.1%;
Strong anti-interference, SpO2 and pulse
rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is
±4%, pulse rate error is ±2 bpm or ±2% (select larger)
High Quality, Quick Response, Easy Operate
Automatically startup once your finger clip on the machine in 5seconds, and power off in 8seconds once take out your finger.
Heart beat sound
The pulse beep is synchronous with the pulse and can be on/off by press key;
Warn sound when the value is abnormal.
Battery work hour is 30hours
Why choose us:
1. Powerful Company Culture and System
2. 8Years Experience of Research&Development, so we can provide you the OEM&ODM, design the special products to you by your detail requirement.

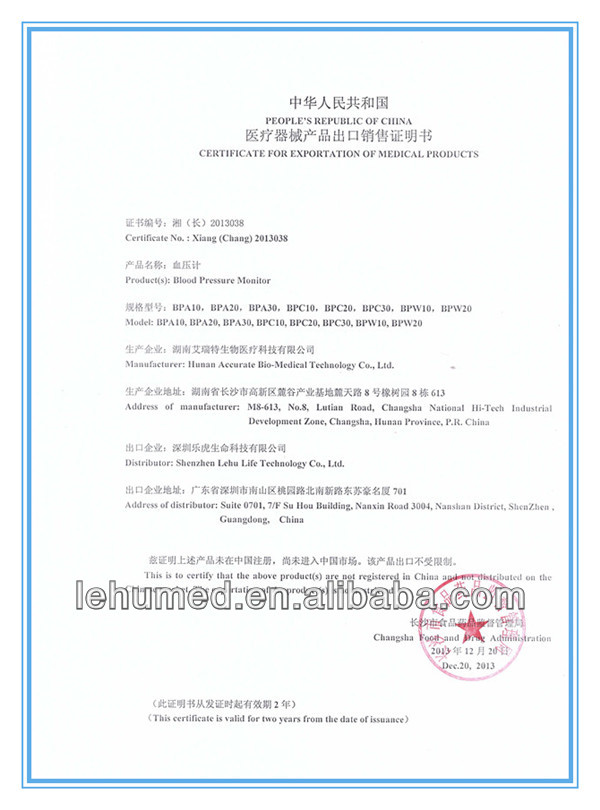

3. High Quality Products with the Competitive Price (ISO & CE Mark & TUV
4. Strong Team Work Power, Best Service
